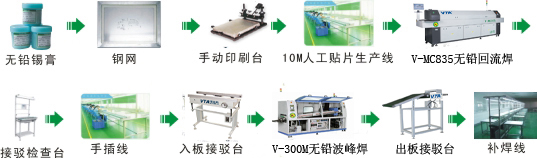

Steel mesh

File PCB film and other professional data processing, high precision error. Imported steel sheet production, reliable quality.
1. Standard size: 37cm*47cm
2. Non-standard size: 30cm*40cm/42cm*52cm/ 55cm*65cm
3. Steel sheet thickness (optional): 0.1/0.12/0.15/0.18/2.0
4. Production method: etching / etching / laser

Ordinary printing station
In the manual press, the solder paste (sMD) is printed on the pad of the PCB (in the middle of the pad) for the next process. The manual printing machine is manually performing the work of placing the board, positioning, printing, taking the board and cleaning the stencil.

1. Positioning method: edge positioning or hole positioning
2. Adjustment method: manual fine adjustment
3. Adjust the direction: front, back, left and right, up and down.

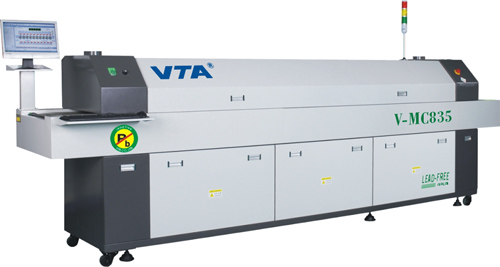

V-MC835 lead-free reflow soldering

Unique advanced longevity heating system
1. The heating system adopts high-efficiency and energy-saving Swedish 110 volt nickel-plated heating tube with a peak wavelength of 4 UM, combined with a curved reflector, high thermal efficiency, fast temperature rise, and a special forced hot air circulation structure system to make the PCB and components heat evenly. Completely eliminate the "shadow effect."
2. Adopting Swiss CARLO high-current solid-state relay without contact output, safe and reliable, combined with the unique fuzzy control function of the thermostat, it constantly monitors the changes of external temperature and heat value, and controls the heating device with minimum pulse. Respond to ensure that the temperature control accuracy is ±1 °C, the temperature distribution error within the machine is within ±2 °C, and the temperature distribution in the longitudinal direction conforms to the IPC standard.
3. Temperature control adopts imported precision controller with fuzzy control and PID intelligent operation, through PID intelligent operation, automatic control of heat generation, fuzzy control function to increase overshoot and suppression function and quickly respond to external heat change function, fastest speed response Changes in external heat and internal control ensure a more balanced temperature.
4. The heat pipe module is designed for easy maintenance and disassembly.
5. Adopting Taiwan Mitsukoshi high-temperature high-speed motor, the wind is stable, the vibration is small, and the noise is small.
6. The upper furnace body can be opened as a whole to facilitate the cleaning of the furnace.
7. With temperature tolerance, fault diagnosis, sound and light alarm
8. Powerful, rapid heating, from room temperature to a constant temperature of about 15 minutes.
9. Special SSR radiator, greatly improving heat dissipation efficiency and effectively extending its service life
10. It adopts high temperature protection system, the furnace is made of special materials, suitable for lead-free soldering, and the soldering area is equipped with rosin flux recovery system to protect the environment.

Reliable and stable transmission system

1. Transmission system adopts Taiwan STK stepless variable speed motor, electric adjustable line speed stepless speed governor, with 1:150 STK turbine reducer, running smoothly, speed 200-1800mm/min stepless adjustable, and accurate The digital line speed indicator.
2. It adopts independent roller structure and supporter support, combined with the matching stainless steel mesh belt, it runs smoothly and the speed is accurate to ±20mm/min;
3. Special stainless steel mesh belt, durable and wearable. It is not easy to change for a long time.

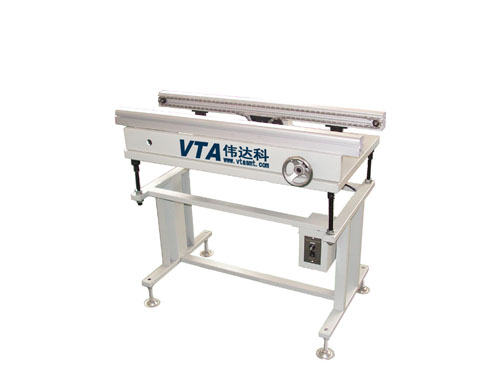

Exit board

1. Taiwan STK with tooth box with speed control dedicated control motor, running smoothly and not shaking.
2. 40*40 special aluminum profile with special connection angle adjuster, just adjust the connection angle by turning the adjustment handle.
3. Imported 2MM thick anti-static conveyor belt, durable wear.
4. Special lifting sleeve structure, the height of the connection can be adjusted as long as the lifting handle is turned.
5. Height adjustment: Please loosen the inner hexagon with the special wrench provided, then lift the upper part of the docking station, and then tighten the screw.
6. Speed adjustment: Please use the knob on the governor, low speed on the left and high speed on the right.
7. Level adjustment: Please use the foot cup of the machine foot to level.
8. Connection angle adjustment: Please loosen the two support rod screws first, then loosen the middle connection handle, adjust to an appropriate angle, and then lock the parts.
